Green energy-saving intelligent production is suitable for mesh plate, sheet, stamping parts, laser parts leveling accuracy.

The XL-EPM precision leveling machine is the latest product developed and designed by the Xuelong team based on 25 years of experience in leveling machine production and manufacturing, in collaboration with domestic and foreign expert teams to meet the market demand for high-precision sheet metal. Breaking the traditional leveling machine design concept, with the latest mechanical structure, roller system design and control system, it is a high-precision, high-strength, intelligent precision leveling equipment.

Features of the Electric Leveling Machine:
• Auxiliary wheel reduces the gap between the upper and lower leveling rollers, ensuring higher leveling accuracy.
• 10-inch high-precision touchscreen display, simple operation.

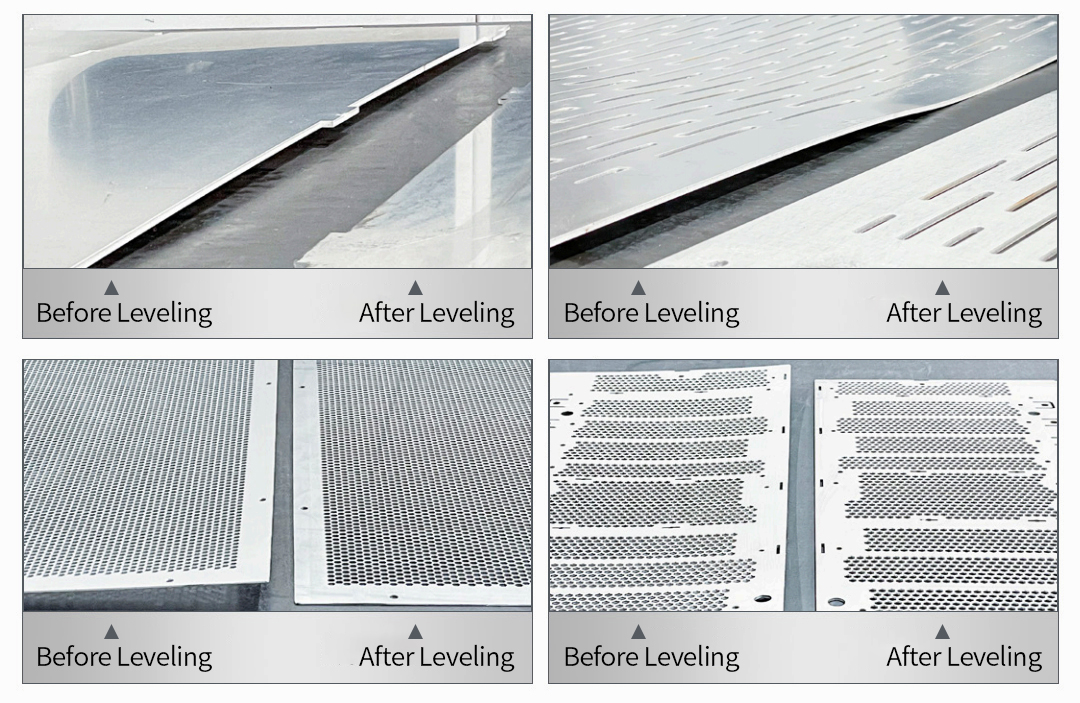

• Only a few minutes are needed to make stamped parts, plates, and components flat with almost no residual stress.
• The precision leveling machine adopts continuous reciprocating bending technology, doubling the leveling efficiency, significantly reducing labor costs and eliminating reliance on traditional leveling experience.
• It uses universal joint transmission, providing greater force, uniform power transmission, low noise, and more durable equipment!

The Xuelong CNC leveling machine is widely used in the industry, boasting advanced technology, high leveling precision, a wide process range, high automation, and reliable and stable performance under high-intensity operation. In the roller leveling process, metal plates undergo a series of alternating bends. Through precise control of the pressure of each leveling roller by the motor and PLC, internal stress is eliminated, fundamentally solving the unsatisfactory leveling effect caused by inconsistent stress at different positions of the plate, thus achieving high-precision leveling. All machine movements are centrally controlled by the console, which is simple and convenient to operate, with digital display of displacement for quick and easy operation.

Machine Model	EPM 60-600	EPM 60-1000	EPM 60-1300	EPM 60-1600
Workpiece Thickness(mm)	1.0-10.0	1.0-10.0	1.0-10.0	1.0-10.0
Maximum Leveling Width(mm)	600	1000	1300	1600
Minimum Workpiece Length(mm)	150	150	150	150
Leveling Speed (m/min)	3-20	3-20	3-20	3-20
Replacement Device	standard	standard	standard	standard
CNC Adjustment	standard	standard	standard	standard
Size(mm) (长x宽x高)	2,500×2,900 x2,350	2,500×3,300×2,350	2,500×3,600×2,350	2,500 x3,900 x2,350
Total Weight (kg)	7,800	9,200	10,500	12,800
